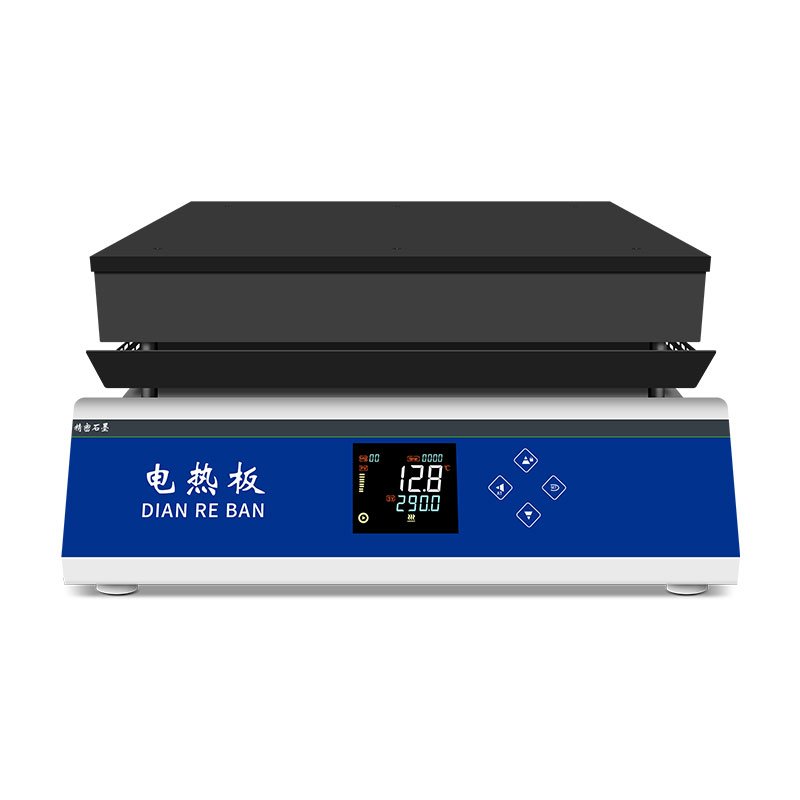

Graphite Electric Heating Plate Feature:
- The heating element is made of high-purity graphite subjected to isostatic pressing, which has excellent thermal conductivity. The thickness of the tabletop is 12MM, ensuring the uniformity of temperature across all points of the heating panel.
- It adopts a brand LCD display instrument, which is elegant and stylish, with precise temperature control. The PID parameters can be self-checked and the heating rate can be automatically adjusted. The temperature control accuracy is high.
- Energy-saving and efficient: Utilizing a unique heating and insulation method, it enhances thermal efficiency and is environmentally friendly. The connecting components are made of anti-corrosion materials, and the chassis undergoes anti-corrosion spraying treatment, enabling it to withstand harsh corrosive environments.
Graphite Electric Heating Plate Specification:
| Model number | RYD-3EFS |
| Maximum temperature | 420℃ |
| Power supply | 220V 50Hz（The DB-3EFS has a relatively large power capacity. When connecting to the power supply, it must be connected to an earth leakage protector or a switch.） |
| Temperature control range | 50℃-420℃ |
| Heating method | Heating wire |
| Display accuracy | 0.1℃ |
| Display mode | LCD |
| Power | 3700W |
| Studio size (mm) | 600*400 |
| Dimensions of the shape（mm） | 540*600*200 |
| Packaging dimensions（mm） | 650*730*330 |
| Load-bearing | 7kg |
| Gross weight | 33kg |
