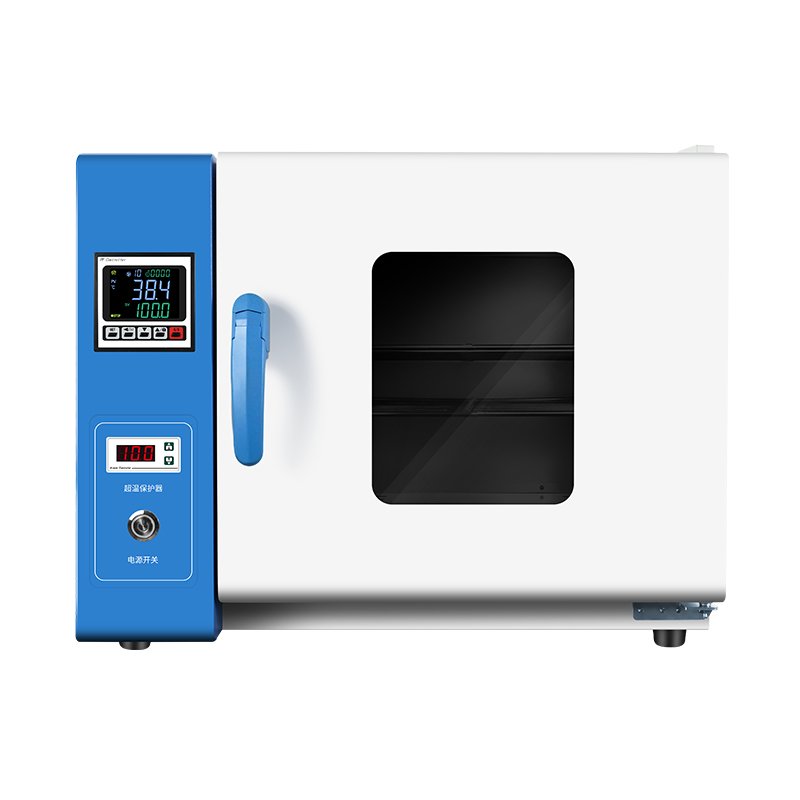

RDO Series Air Drying Oven Feature:
- The product casing is made of high-quality galvanized sheet and is processed into shape. The surface is treated with electrostatic spraying technology, which ensures long-term corrosion resistance and durability.
- The inner liner of the box is made of high-quality 304 stainless steel and is processed by cutting. The four corners are rounded, which is convenient for cleaning.
- The super-large ergonomic design of double-layer tempered glass observation window makes it convenient to observe the experimental process inside the box.
- The use of a new type of synthetic silicone sealant strip results in an attractive appearance and enables long-term operation at high temperatures, with an extended service life.
- The standard configuration includes ten-speed wind speed adjustment function. Users can adjust the wind speed according to their experimental needs.
- Intelligent liquid crystal temperature control instrument, with precise and reliable temperature control.
- Standardly equipped with an over-temperature protector and a timer. If the temperature exceeds the limit, the heating will automatically stop to ensure the safety of the experimenters and the instruments.
- Alarm function: Over-temperature alarm, temperature deviation correction, temperature control self-tuning, door control, etc. (The heating stops automatically when the door is opened to prevent the machine from overheating.)
RDO Series Air Drying Oven Specification:
| Model number | RDO-9210C |
| Capacity | 210L |
| Rated power supply | 220V 50Hz |
| Temperature control range | RT+10C-300℃ |
| Temperature resolution | ±1℃（at 100℃） |
| Temperature fluctuation degree | ±2.5% (The test point is 100℃) |
| Temperature distribution accuracy | 土2.5% |
| Inner liner material | 304 stainless steel inner liner |
| Shell material | Galvanized sheet (surface electrostatic spraying) |
| Insulation layer | Ceramic fibers |
| Heater | Stainless steel heating tube |
| Rated power | 2000w |
| Exhaust port (test subunit) | 35mm (top) one |
| Control Panel | LED |
| Temperature sensor Timer function | PT100 0-9999min |
| Operation mode | Constant-speed operation, timed operation, automatic stop |
| Wind speed adjustment | Built-in ten-speed wind adjustment (left fan) |
| Inner tank dimensions (mm) | 500×600×700 |
| Overall dimensions (mm) | 680×910×880 |
| Packaging dimensions (mm) | 720×960×970 |
| Standard/Maximum number of partitions | 2/10 |
| Partition spacing | 60mm |
| Partition load-bearing capacity | 16kg |
| Gross weight | 80kg |
| Additional functions | Sensor deviation correction, over-temperature alarm, PID self-tuning for temperature overshoot, internal parameter locking, power-off parameter restoration |
| Optional functions | Programmable control instrument, liquid crystal display instrument, printer, 485 interface, USB interface, SMS alarm |
