| Model number | RDO-9042C |
| capacity | 42L |
| Rated power supply | 220V 50Hz |
| Temperature control range | RT10℃-300℃ |
| Temperature resolution | 0.1 |
| Temperature fluctuation | ±1℃ (at 100℃) |
| Temperature distribution accuracy | ±2.5% |
| Liner material | SUS304 stainless steel liner |
| Shell material | Cold-rolled steel plate (surface electrostatic spraying) |
| Insulating layer | Ceramic fibre |
| heater | Stainless steel heating pipe |
| Rated power | 1000w |
| Exhaust hole | φ35mm(top) one |
| Control panel | led LCD screen |
| Temperature sensor | PT100 |
| Timing function | 0-9999min |
| Mode of operation | Fixed value operation, timed operation, automatic stop |
| Wind speed regulation | Built-in 10-speed wind speed |
| Constant wind speed operation | 350*350*350 |
| Overall dimensions mm | 520*660*530 |
| Package size mm | 580*730*600 |
| Divider standard/Max | 2/4 |
| Spacer spacing | 60mm |
| Bulkhead bearing | 16kg |
| Gross weight | 43kg |
| Additional function | Sensor deviation correction, overtemperature alarm, temperature overshoot PID self-tuning, internal parameter locking, power off parameter recovery |
| Optional function | Program control instrument, printer, 485 interface, USB interface, SMS alarm |

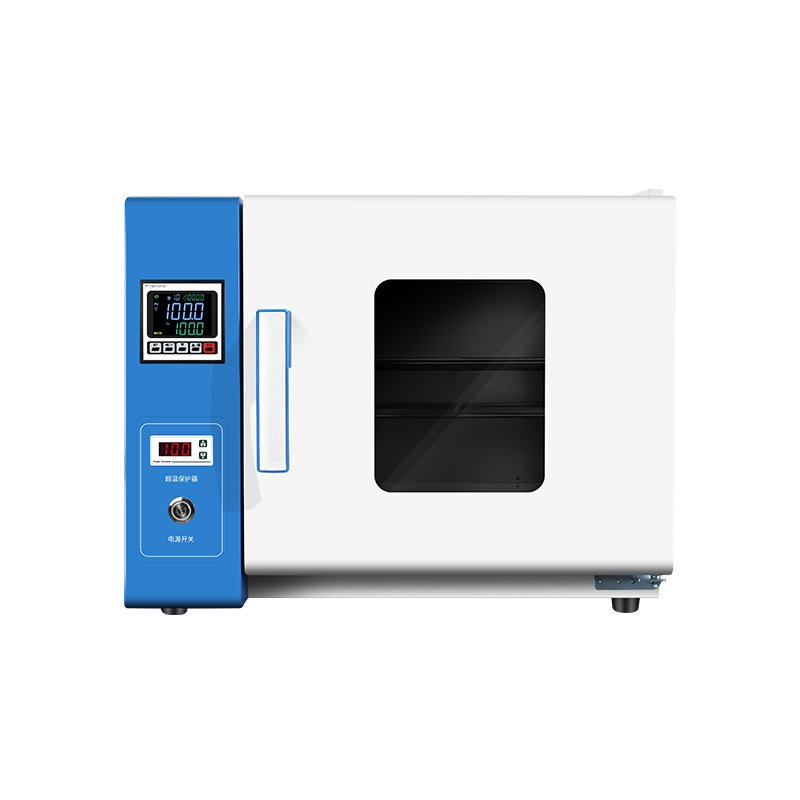

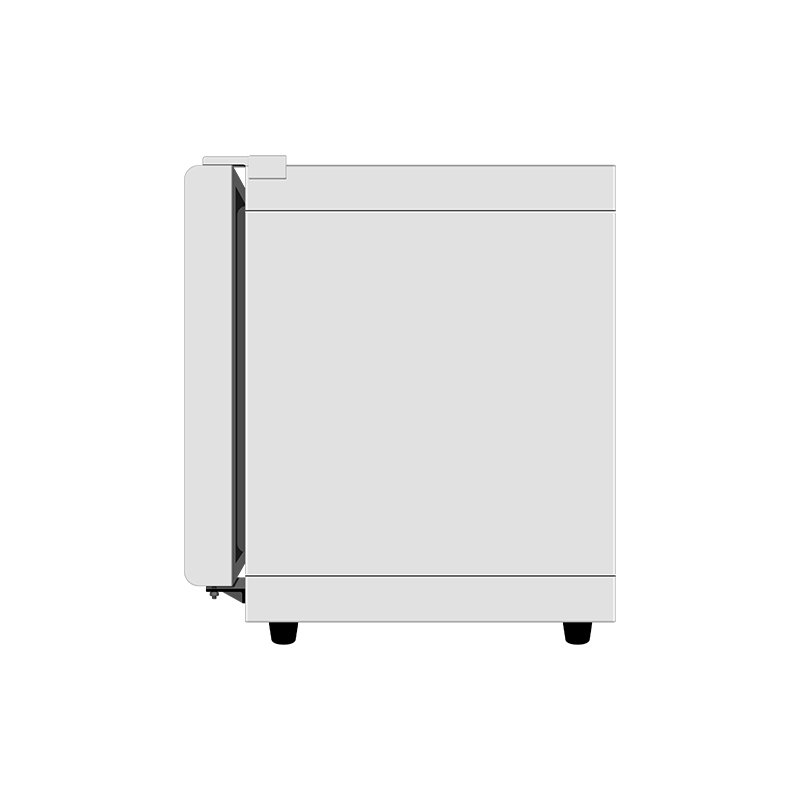

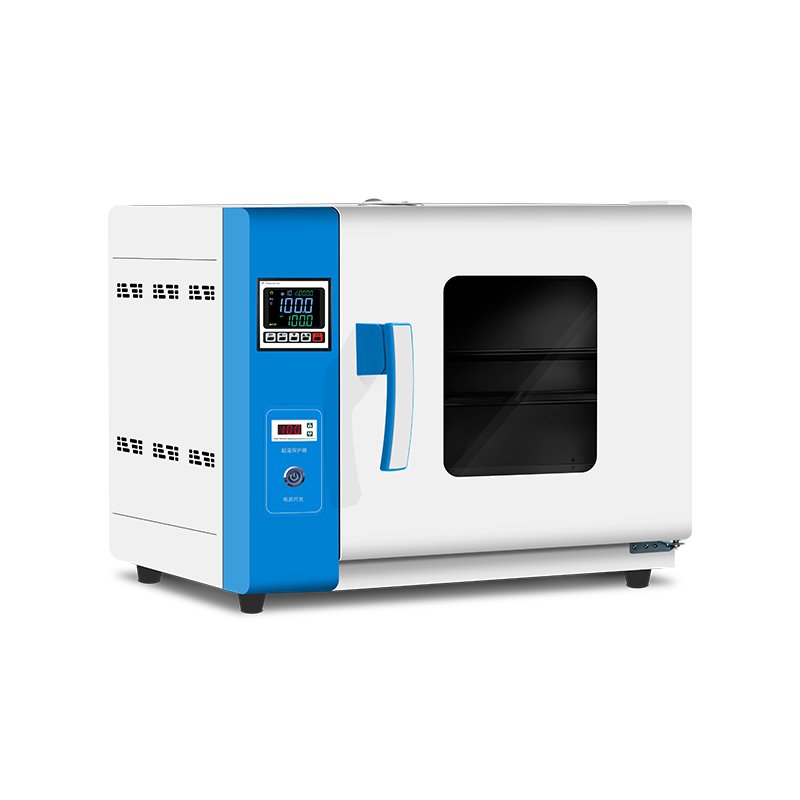

RDO series air drying oven
RDO-9042C
◆ The shell of the product is made of high quality cold plate processing, and the surface is treated by spraying technology.
◆ Intelligent liquid crystal temperature control meter, standard overtemperature protector, timer, overtemperature alarm indicator, temperature deviation correction, temperature control self-setting, fan automatic speed regulation, door control and other functions (open the door automatically off heating effectively prevent machine overtemperature).
◆ Thickened double-layer tempered glass observation window, easy to observe the changes in the box.
◆ New synthetic silicone sealing strip, beautiful appearance, long-term high temperature operation, longer service life.
◆ Standard 10-speed wind speed adjustment function, users can adjust the wind speed or automatic wind speed according to needs.
◆ Precision: high precision microcomputer LCD temperature controller, accurate and reliable temperature control.
◆ Rapid: fast heating, forced convection, dry hot air directly through the heated object, drying, disinfection time is significantly shortened.
◆ Safety: exceed the limit temperature is automatically interrupted to ensure the safety of personnel and instruments.
◇ Can install program control instrument, printer, 485 interface, U disk storage, SMS alarm and other functions.
