| Model number | RZFL-6050A/B/C |
| capacity | 50L |
| Rated power supply | 220V 50Hz |
| Temperature control range | RT+10℃-250℃ |
| Heating method | Decompression, heat conduction on four walls |
| Vacuum degree | ＜133pa |
| Temperature resolution | 0.1 |
| Temperature fluctuation | ±1℃ |
| Liner material | A: Galvanized inner liner B: 201 stainless steel inner liner C: SUS304 stainless steel inner liner |
| Shell material | Cold-rolled steel plate (surface electrostatic spraying) |
| Insulating layer | Ceramic fibre |
| heater | Stainless steel heating pipe |
| Viewing window material | Tempered glass |
| Vacuum gauge | Silicone oil vacuum pressure gauge |
| Rated power | 1400W |
| timer | 0-9999min |
| Running function | Fixed value operation, timed operation, automatic stop |
| sensor | PT100 |
| Control panel | LED |
| Internal dimensions mm | 370*415*345 |
| Overall dimensions mm | 550*720*540 |
| Package size mm | 840*685*685 |
| Divider standard/Max | |
| Spacer spacing | |
| Bulkhead bearing | |
| Gross weight | |
| Additional function | |
| Optional function | Automatic vacuum meter, vacuum pump |
RZF series vacuum drying oven

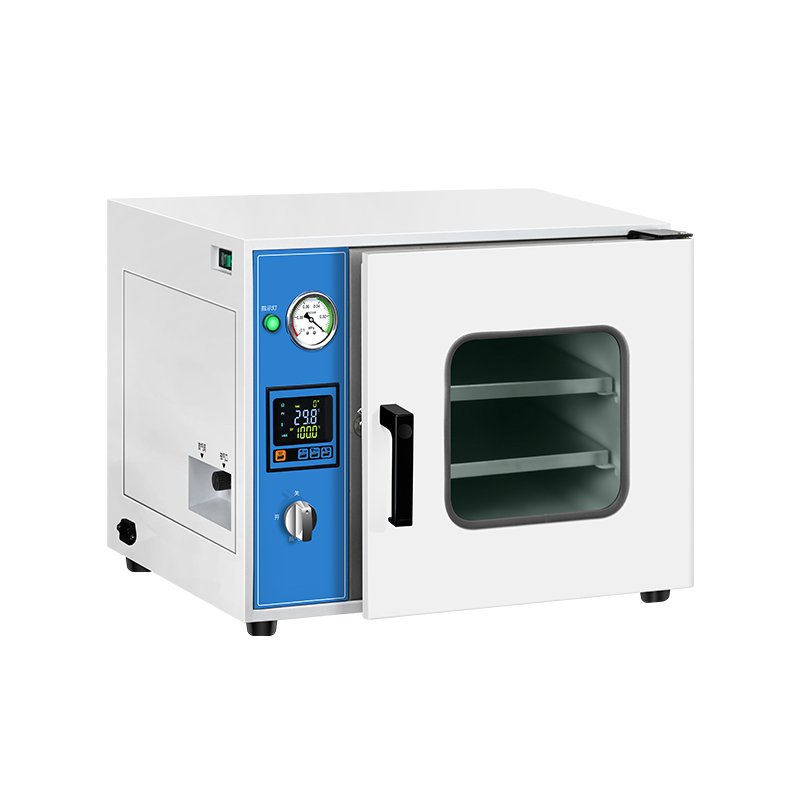

RZF-6050A(RZF-6050B)(RZF6050C)
◆ The shell is made of cold-rolled steel plate, the surface is electrostatic spray plastic, the inner liner is made of galvanized or stainless steel material, and the semi-circular four-corner design is more convenient to clean;
◆ Microcomputer temperature control system, intelligent PID self-tuning control, with temperature control, timing, overtemperature alarm function;
◆ The tightness of the door can be adjusted arbitrarily, the integral shape of the silicone door seal, surround heating system, to ensure high vacuum in the box, uniform heating;
◆ The studio is rectangular structure, and the door adopts toughened double-layer glass door to ensure the safety of users’ experiments.
◆ Large viewing Angle viewing window, convenient observation of laboratory objects;
◆ With set parameter memory, call recovery function, the device can automatically resume operation according to the original set program.
Related products
-
DZF-6050G (with partition heating)
RZF series vacuum drying ovenRead more◆ The outer shell is made of cold-rolled steel, with the surface treated by electrostatic powder coating. The inner liner is made of stainless steel. The semi-circular corner design makes cleaning easier.
◆ The temperature control system employs microcomputer single-chip technology. The LCD screen displays various parameters. The temperature controller has functions such as temperature control, timing, and over-temperature alarm.
◆ The fully formed silicone rubber door seal ensures a high vacuum inside the box.
◆ The laboratory is of a rectangular structure. The cabinet door is equipped with a tempered double-layer glass door to ensure the safety of the users during experiments. A large-angle iewable observation window is adopted to facilitate the observation of the experimental items within the laboratory.
◆ It has the function of restoring the system to normal after power failure or system crash, and it can recover the lost status data and saved parameters. -
RZF-6090A(RZF-6090B)(RZF6090C)
RZF series vacuum drying ovenRead more◆ The shell is made of cold-rolled steel plate, the surface is electrostatic spray plastic, the inner liner is made of galvanized or stainless steel material, and the semi-circular four-corner design is more convenient to clean;
◆ Microcomputer temperature control system, intelligent PID self-tuning control, with temperature control, timing, overtemperature alarm function;
◆ The tightness of the door can be adjusted arbitrarily, the integral shape of the silicone door seal, surround heating system, to ensure high vacuum in the box, uniform heating;
◆ The studio is rectangular structure, and the door adopts toughened double-layer glass door to ensure the safety of users’ experiments.
◆ Large viewing Angle viewing window, convenient observation of laboratory objects;
◆ With set parameter memory, call recovery function, the device can automatically resume operation according to the original set program. -

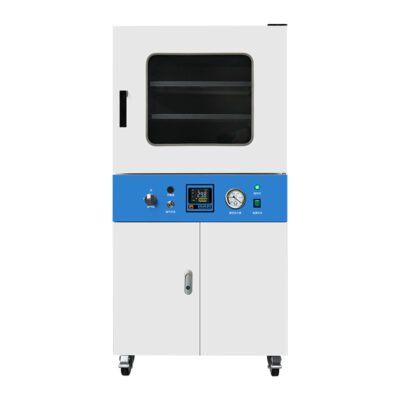

RZFL-6090B(RZFL-6090C)
RZF series vacuum drying ovenRead more◆ The shell is made of cold-rolled steel plate, the surface is electrostatic spray plastic, the inner liner is made of galvanized or stainless steel material, and the semi-circular four-corner design is more convenient to clean;
◆ Microcomputer temperature control system, intelligent PID self-tuning control, with temperature control, timing, overtemperature alarm function;
◆ The tightness of the door can be adjusted arbitrarily, the integral shape of the silicone door seal, surround heating system, to ensure high vacuum in the box, uniform heating;
◆ The studio is rectangular structure, and the door adopts toughened double-layer glass door to ensure the safety of users’ experiments.
◆ Large viewing Angle viewing window, convenient observation of laboratory objects;
◆ With set parameter memory, call recovery function, the device can automatically resume operation according to the original set program. -
RZFL-6050B(RZFL-6050C)
RZF series vacuum drying ovenRead more◆ The shell is made of cold-rolled steel plate, the surface is electrostatic spray plastic, the inner liner is made of galvanized or stainless steel material, and the semi-circular four-corner design is more convenient to clean;
◆ Microcomputer temperature control system, intelligent PID self-tuning control, with temperature control, timing, overtemperature alarm function;
◆ The tightness of the door can be adjusted arbitrarily, the integral shape of the silicone door seal, surround heating system, to ensure high vacuum in the box, uniform heating;
◆ The studio is rectangular structure, and the door adopts toughened double-layer glass door to ensure the safety of users’ experiments.
◆ Large viewing Angle viewing window, convenient observation of laboratory objects;
◆ With set parameter memory, call recovery function, the device can automatically resume operation according to the original set program.
