| Model number | RGL-9072B |
| capacity | 72L |
| Rated power supply | 220V 50Hz |
| Temperature control range | RT+10℃-300℃ |
| Temperature resolution | 0.1 |
| Temperature fluctuation | ±1℃ (at 100℃) |
| Temperature distribution accuracy | ±2.5% |
| Liner material | 201 stainless steel liner |
| Shell material | Cold-rolled steel plate (surface electrostatic spraying) |
| Insulating layer | Ceramic fibre |
| heater | Stainless steel heating pipe |
| Rated power | 1500w |
| Exhaust hole | φ35mm(top) one |
| Control panel | LCD |
| Temperature sensor | PT100 |
| Timing function | 0-9999min |
| Mode of operation | Fixed value operation, timed operation, automatic stop |
| Wind speed regulation | Constant wind speed operation |
| Internal dimensions mm | 400*400*450 |
| Overall dimensions mm | 580*540*810 |
| Package size mm | 600*640*880 |
| Divider standard/Max | 2/4 |
| Spacer spacing | 80mm |
| Bulkhead bearing | 16kg |
| Gross weight | 46kg |
| Additional function | Sensor deviation correction, overtemperature alarm, temperature overshoot PID self-tuningg |
| Optional function | Program control instrument, printer, 485 interface, USB interface, SMS alarm |

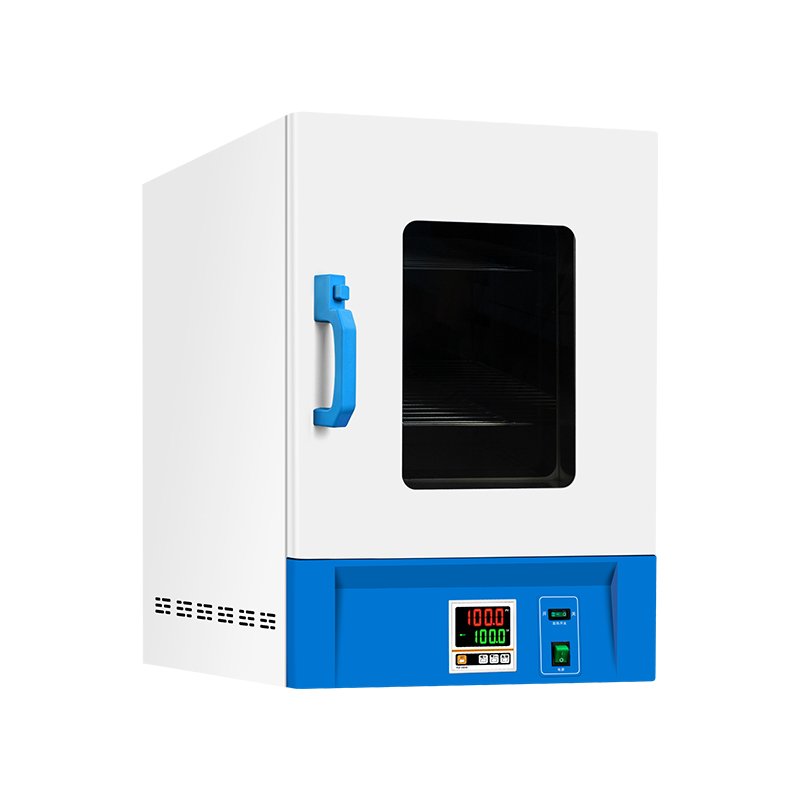

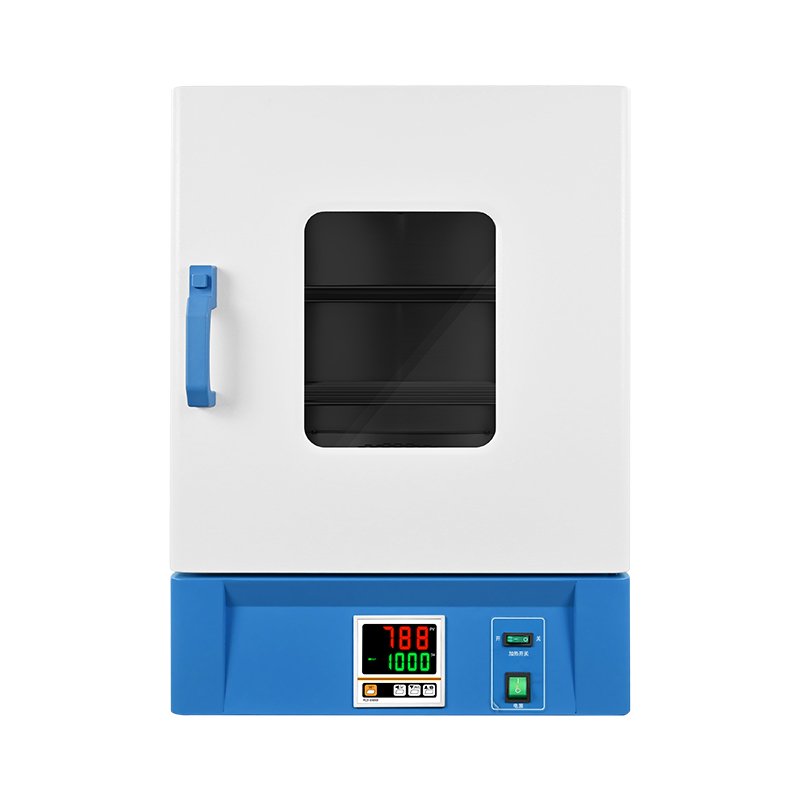

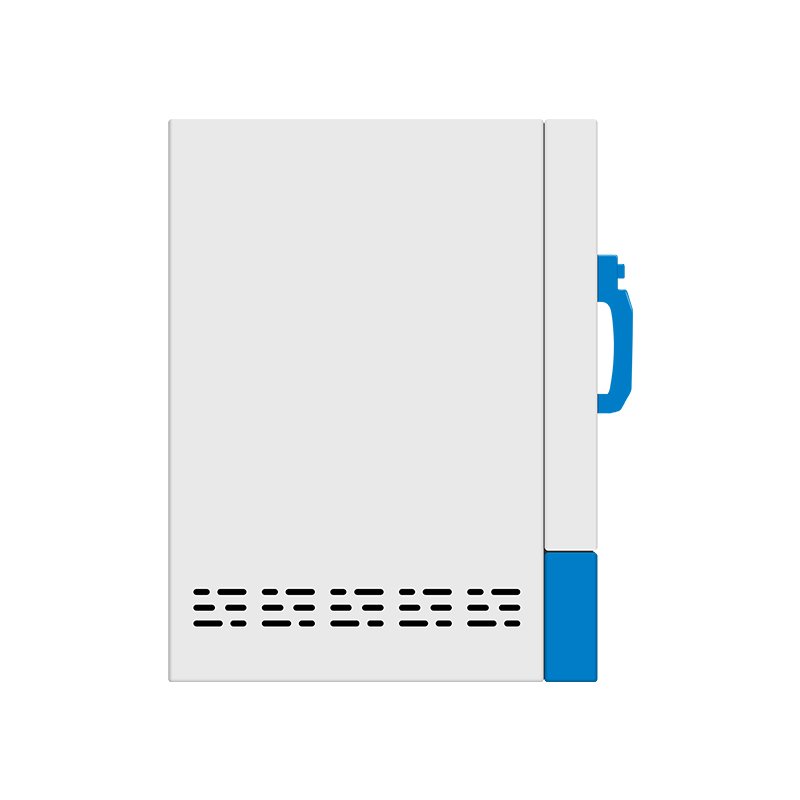

RGL series air drying oven
RGL-9072B
◆ The shell is made of high-quality cold-rolled steel, the surface is treated by electrostatic spraying process, beautiful appearance, anti-corrosion and durable.
◆ The studio is made of stainless steel plate processing and anti-corrosion treatment, the shelf height is adjustable, the four corners are semi-arc, easy to clean.
◆ Intelligent digital display PID temperature control meter, with timing, overtemperature alarm indication, temperature deviation correction, temperature control self-tuning and other functions.
◆ Large double toughened glass observation window, easy to observe the changes in the box.
◆ New synthetic silicone sealing strip, beautiful appearance, long-term high temperature operation, longer service life.
◆ Hot air circulation system adopts low noise self-cooling fan to ensure longer fan life and uniform temperature in the box.
◆ Can be installed LCD instrument, program control instrument, overtemperature protector, printer, 485 interface, U disk storage, SMS alarm and other functions.
