| Model number | RDO-9020B |
| capacity | 20L |
| Rated power supply | 220V 50Hz |
| Temperature control range | RT10℃-250℃ |
| Temperature resolution | 1 |
| Temperature fluctuation | ±1℃ (at 100℃) |
| Temperature distribution accuracy | ±2.5% |
| Liner material | Galvanized liner |
| Shell material | Cold-rolled steel plate (surface electrostatic spraying) |
| Insulating layer | Ceramic fibre |
| heater | Stainless steel heating pipe |
| Rated power | 600w |
| Exhaust hole | φ35mm(top) one |
| Control panel | Nixie tube |
| Temperature sensor | PT100 |
| Timing function | 0-9999min |
| Mode of operation | Fixed value operation, timed operation, automatic stop |
| Wind speed regulation | Constant wind speed operation |
| Constant wind speed operation | 260*280*280 |
| Overall dimensions mm | 430*410*550 |
| Package size mm | 490*520*705 |
| Divider standard/Max | 2/4 |
| Spacer spacing | 40mm |
| Bulkhead bearing | 16kg |
| Gross weight | 29kg |
| Optional function | Program control instrument, printer, 485 interface, USB interface, SMS alarm |

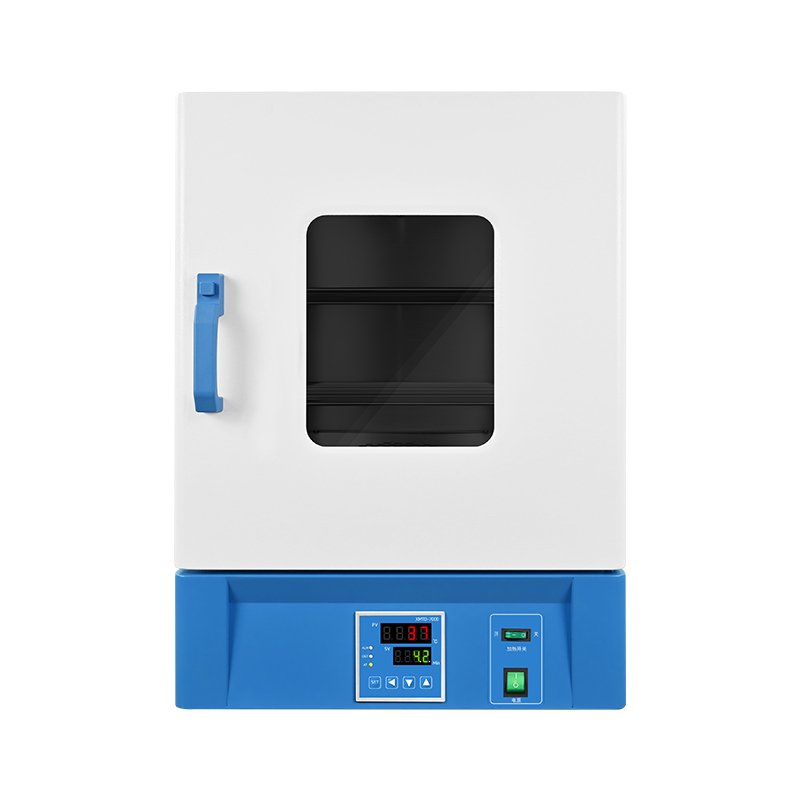

RDO series air drying oven
RDO-9020A
◆ The shell of the product is made of high quality cold plate processing, and the surface is treated by spraying technology.
◆ The studio can choose stainless steel or galvanized sheet processing and manufacturing.
◆ Intelligent digital display PID temperature control meter, with timing, overtemperature alarm indication, temperature deviation correction, temperature control self-tuning and other functions.
◆ Large double toughened glass observation window, easy to observe the changes in the box.
◆ New synthetic silicone sealing strip, beautiful appearance, long-term high temperature operation, longer service life.
◆ Hot air circulation system adopts low noise self-cooling fan to ensure longer service life of the fan and more uniform temperature in the box. v
◆ Can be installed LCD instrument, program control instrument, printer, 485 interface, U disk storage, SMS alarm and other functions.
◇ Tip: The temperature deviation in the working room is large after the fan is turned off. The fan should not be turned off without special circumstances.
