| Model number | 101-00 |
| Capacity | 25L |
| Rated power supply | 220V 50Hz |
| Temperature control range | RT+10℃-300℃ |
| Temperature resolution | 0.1 |
| Temperature fluctuation | ±1℃（100℃时） |
| Temperature distribution accuracy | ±2.5% |
| Liner material | SUS304 stainless steel liner |
| Shell material | Cold-rolled steel plate (surface electrostatic spraying) |
| Insulating layer | Ceramic fibre |
| heater | Stainless steel heating pipe |
| Rated power | 1500w |
| Exhaust hole | φ35mm(top) one |
| Control panel | LED LCD screen |
| Temperature sensor | PT100 |
| Timing function | 0-9999min |
| Internal dimensions mm | 300*300*280 |

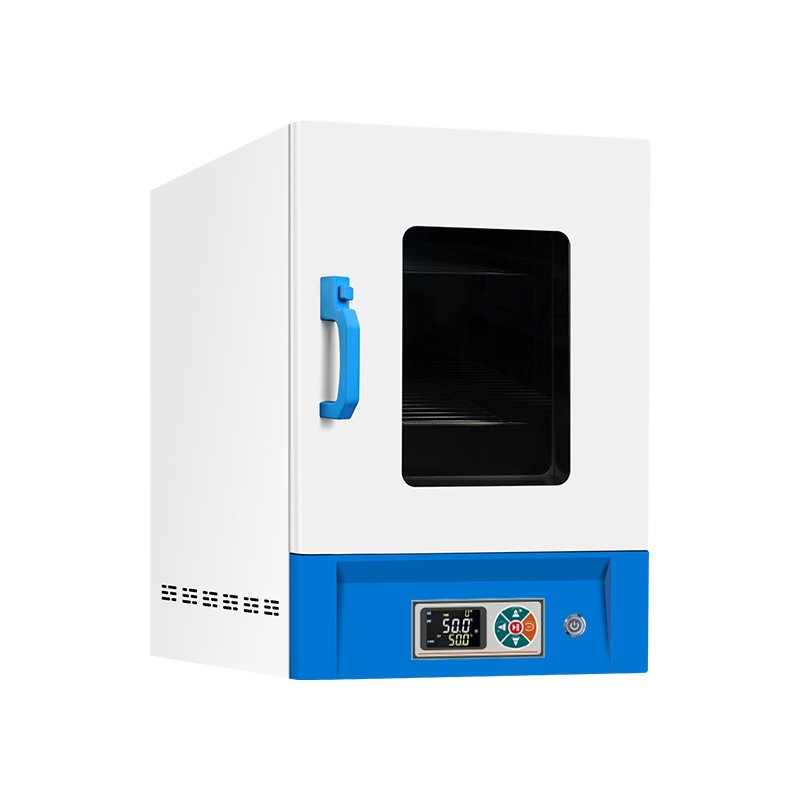

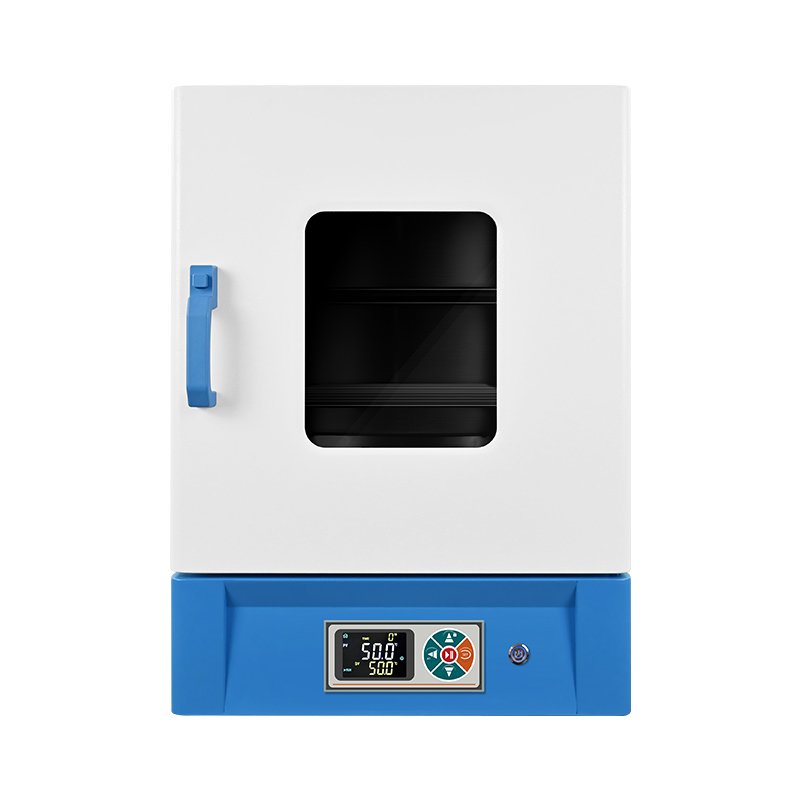

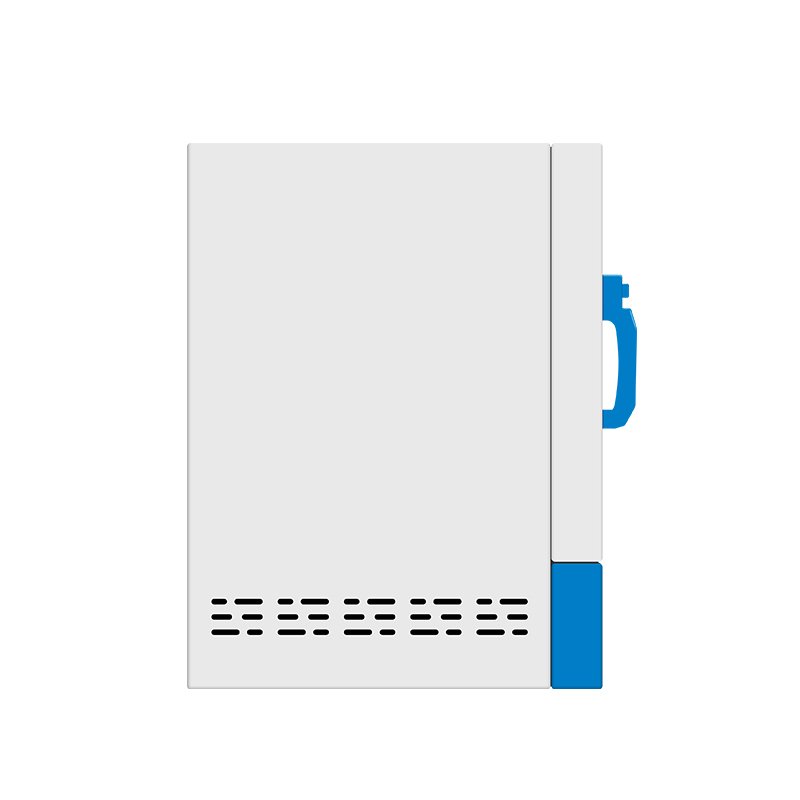

RGL series air drying oven
101-00
◆ The shell of the product is made of high quality cold plate processing, and the surface is treated by spraying technology.
◆ The studio chooses 304 mirror stainless steel processing.
◆ Intelligent digital display PID temperature control meter, with timing, overtemperature alarm indication, temperature deviation correction, temperature control self-tuning and other functions.
◆ Large double toughened glass observation window, easy to observe the changes in the box.
◆ New synthetic silicone sealing strip, beautiful appearance, long-term high temperature operation, longer service life.
◆ Hot air circulation system adopts low noise self-cooling fan to ensure longer service life of the fan and more uniform temperature in the box.
◆ The equipment is equipped with fan speed control switch, the user can adjust the wind speed or automatic wind speed according to the need.
◆ Can be installed LCD instrument, program control instrument, printer, 485 interface, U disk storage, SMS alarm and other functions.
